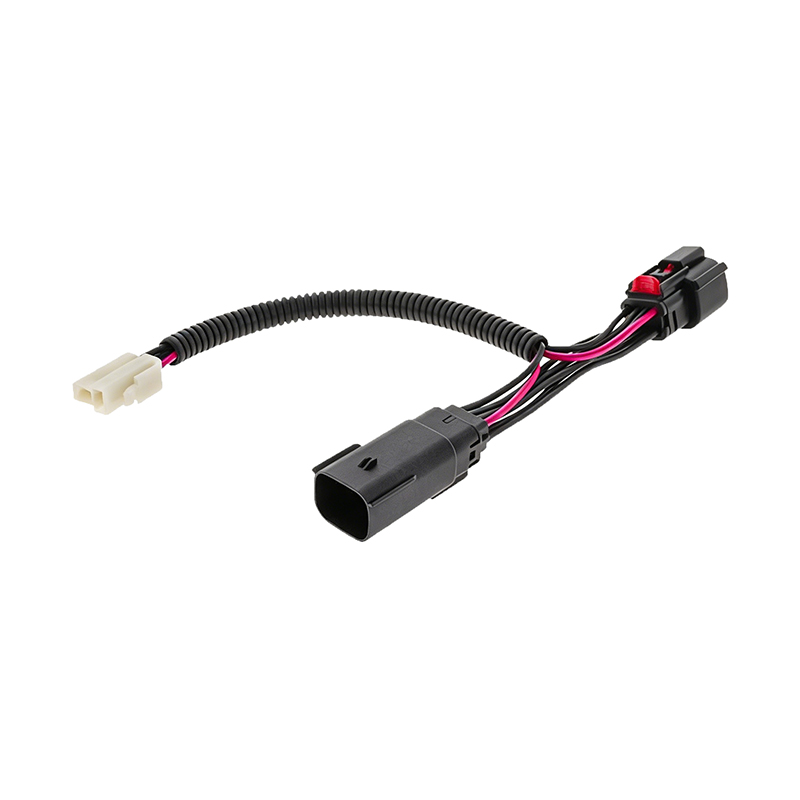

Headlight Patch Wiring Harness Kit for Ford Ranger All Models & Mazda BT-50 2006–2020
SKU: BS-WH-007
Plug & Play Weatherproof Headlight Adapter Patch Wiring Harness, Corrugated Sleeve Wire Loom Fit Ford Ranger PX1/PX2/PX3 & Mazda BT-50 2006–2020 Pickup LED Headlight Upgrade
Description
Plug & Play Headlight Patch Wiring Harness for Ford Ranger PX1/PX2/PX3 & Mazda BT-50 2006–2020
We are a professional manufacturer of automotive off-road lighting wiring adapters and wire loom assemblies. This headlight patch harness is custom-developed for Ford Ranger PX series and Mazda BT-50 pickup trucks manufactured between 2006 and 2020, sharing the same OEM headlight connector layout.
Core Product Features

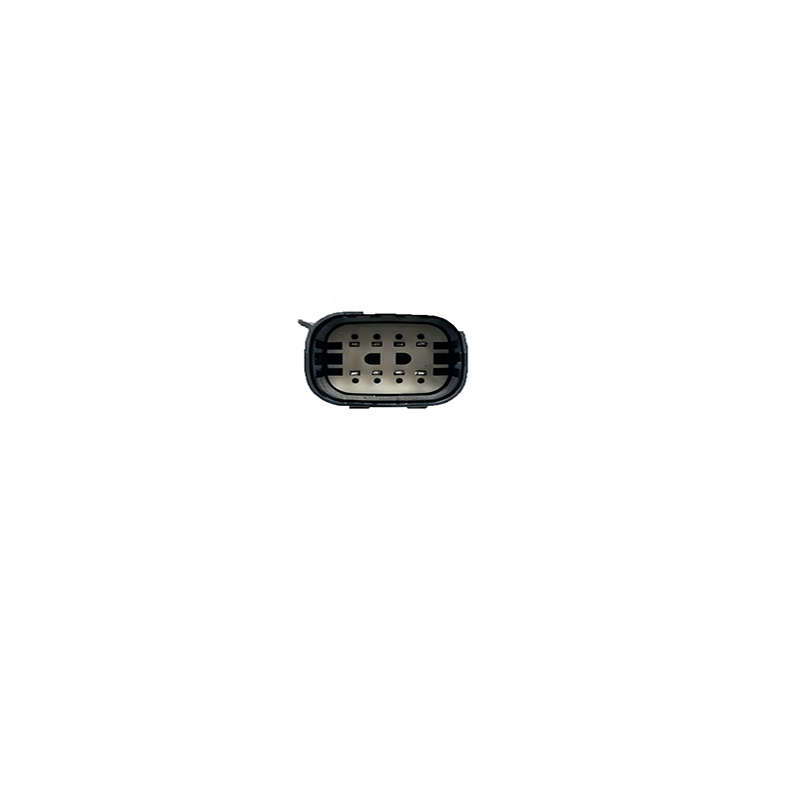

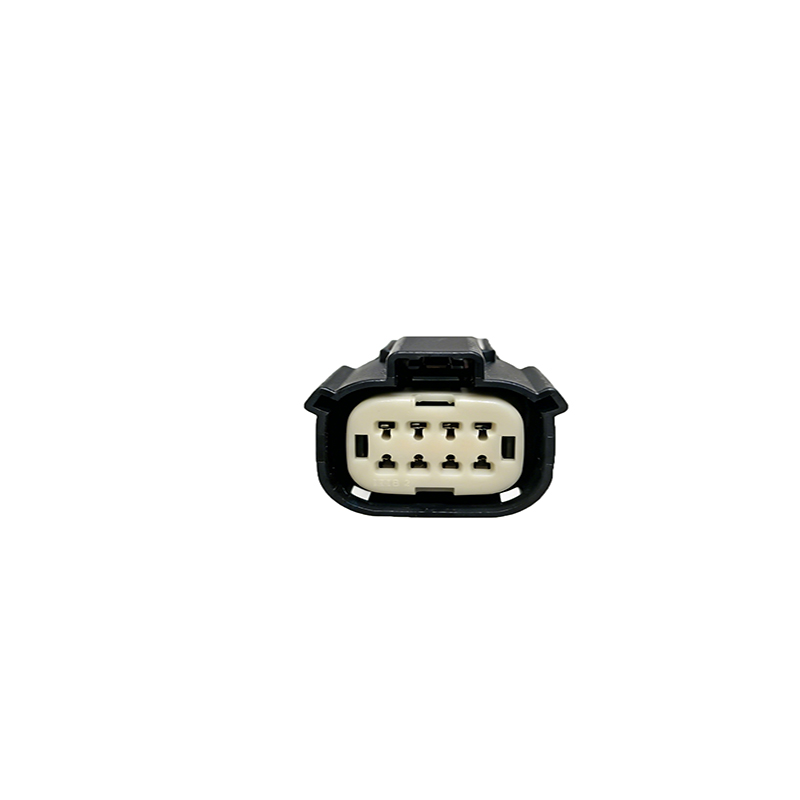

- 1. Vehicle-Specific OEM Connector Matching Precision injection molded plugs fully match the original headlight pin layout and connector shape of 2006–2020 Ford Ranger PX1/PX2/PX3 and Mazda BT-50 UN/UP/UR series. Perfect tight lock fit, no loose contact or intermittent light failure during bumpy off-road driving.
-
2. No-Cut Plug & Play Installation Directly plug the harness as a middle jumper between factory headlight plug and aftermarket lamp assembly. No wire splicing, crimping or permanent modification to vehicle loom. Users can revert back to factory stock headlights at any time without damage.
-
3. Locked Waterproof Sealed Connector System Industrial grade male/female connectors with red safety lock tab and built-in rubber sealing gaskets. Effectively block water splash, mud, humidity and salt mist to prevent terminal oxidation, short circuit and lamp burnout during long-distance overlanding travel.
-
4. Corrugated Protective Tubing & Automotive Grade Wire The main wire section is wrapped with black flexible corrugated sleeve: anti-abrasion, heat insulation, vibration resistance, prevents wire cracking and aging under long-term engine bay high temperature. Internal multi-strand copper core wires meet SAE automotive safety standards, stable voltage output without lamp flickering.
Fully Supported Direct Plug & Fit Ford Ranger Pickup (2006–2020 All PX Generations)
- PX1 Ranger: 2006, 2007, 2008, 2009, 2010, 2011
- PX2 Ranger: 2012, 2013, 2014, 2015
- PX3 Ranger: 2016, 2017, 2018, 2019, 2020 All Cab & Trims: Single Cab, Super Cab, Dual Cab, XL, XLS, XLT, Wildtrak, Raptor
Mazda BT-50 Pickup (2006–2020)
- UN Series BT-50: 2006–2011
- UP/UR Series BT-50: 2011–2020 All Cab & Trims: Freestyle Cab, Dual Cab, XT, XTR, GT
Factory Production Advantages
- 1. Direct factory supply, tiered volume discount for full container bulk orders.
- 2. Strict incoming inspection for wire thickness, connector waterproof performance and electrical conductivity test before shipment.
- 3. Stable monthly output over 15,000 wiring harness sets, flexible lead time for urgent replenishment orders.
- 4. Complete OEM & ODM customization: adjust wire length, wire color, connector style, printed retail packaging.
