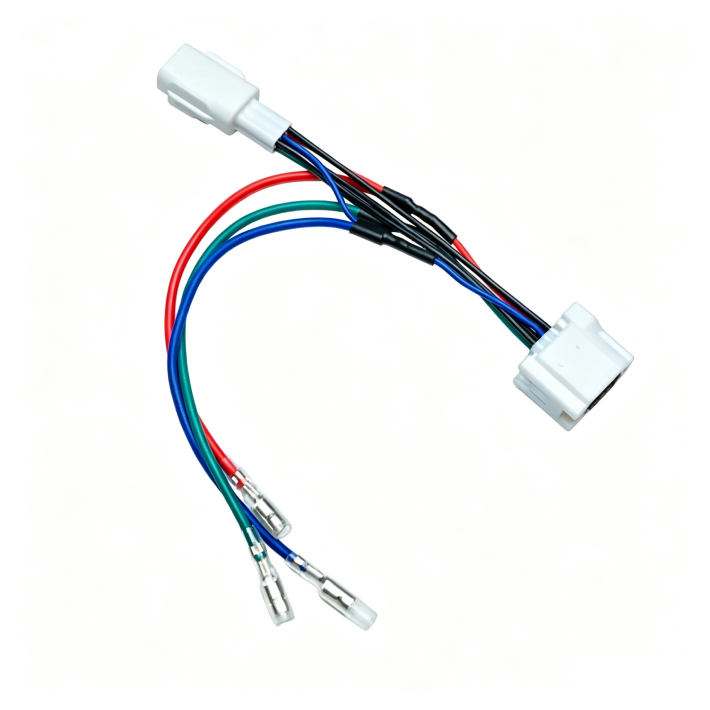

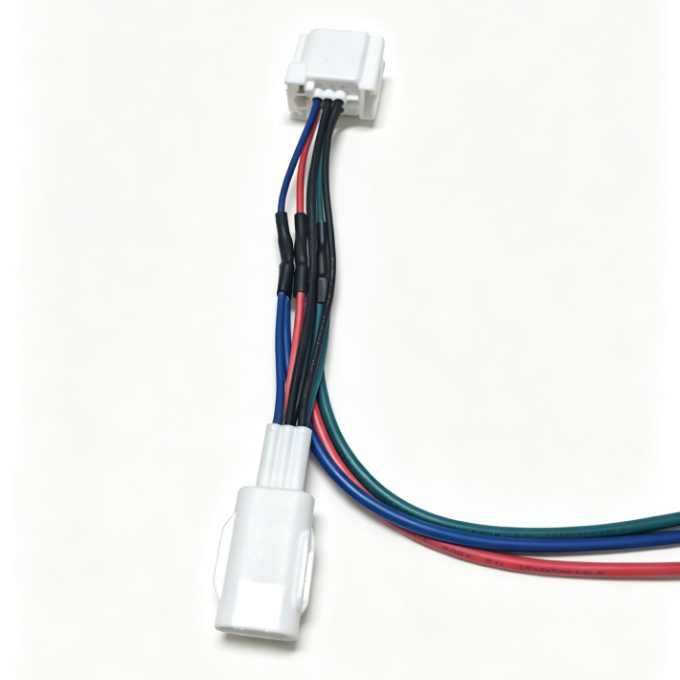

Plug & Play Headlight Patch Harness for Toyota Landcruiser 70 Series (2024+ Facelift) OEM Piggyback Adapter
SKU: LC7024PH
Headlight patch harness is for the LandCruiser 70 Series MY24 Facelift Model, that allows for simple and safe integration into the vehicle’s headlight assembly, without cutting or splicing into the electrical system. Provides high beam positive, high beam negative and low beam pickup points for driving light wiring harness.
产品描述
Key Features & Bullet Points:
1. 100% Plug & Play Installation: Plugs directly into the OEM factory headlight connector behind the headlight unit. No wire cutting, splicing, or damaging original vehicle looms required.
2. Engineered for Toyota Landcruiser 70 Series MY24+: Specifically designed for the updated Toyota Landcruiser 70 Series (MY24 2024+ Facelift models) including LC76, LC78, and LC79.
3. Safe High Beam Signal Pickup: Safely taps into positive (+12V) and negative high-beam trigger signals to automatically power auxiliary LED driving lights, spotlights, or LED light bars when high beams are engaged.
4. Preserves Vehicle Electronics: Keeps factory CANbus circuitry intact and avoids triggering dashboard error codes or invalidating the OEM manufacturer warranty.
Easy 3-Step Installation Guide:
Unplug OEM Connector: Locate the factory connector on the back of either headlight assembly, depress the locking tab, and gently unplug it.
Plug & Patch: Connect the patch harness directly into the headlight socket, then attach the vehicle's original connector to the patch harness receptacle.
Connect Trigger Wires: Attach the color-coded bullet terminals directly to your compatible driving light relay harness.
Wiring Configuration:
Red Wire: Positive High Beam Trigger Signal
Green Wire: Negative High Beam Circuit
(Note: Both Red and Green wires must be connected for relay operation).
Blue Wire (Optional): Low Beam Pickup (+12V) for position light / DRL feature.
| Make | Model | Compatible From | Compatible To |
|---|---|---|---|
| Toyota | Landcruiser 70 Series (Facelift) | 2024 | Current |
