Headlight Patch Harness suits Ford Ranger/Everest
SKU: CB8PIN

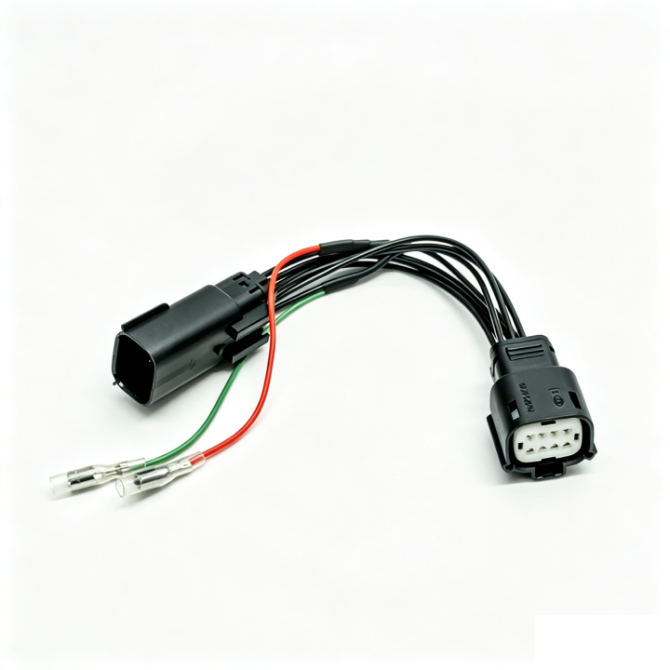

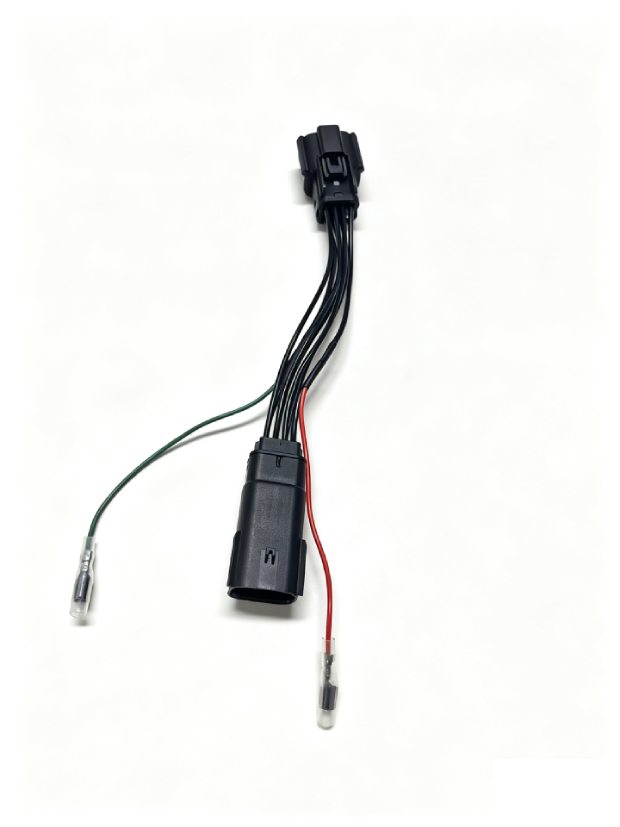

These connectors are suitable for use with the Ford Ranger PX Mk 2 , PX3, Raptor and Everest models allowing for easy plug and play integrate into the existing factory 8 pin headlight connector that are located on the lower back of each side of the vehicles headlight assemblies.
产品描述
DESCRIPTION
You no longer need to put a hole in the dust cover to fit a trigger wire for auxiliary driving lights, simply:
Remove the existing factory eight pin connector from the back of the headlight (left or right side) there is a locking tab that must be depressed while removing the connector.
Fit the corresponding new connector to the connector that has just been removed.
Fit the remaining new connector to the original connector affixed to the headlight assembly.
Then connect to your wiring harness trigger wire and or positioning lights via a relay.
Wiring:
Red wire (12V) is from the vehicles high beam circuit used to trigger a relay for auxiliary lights.
Green wire is from the vehicles negative circuit.
These wires connect directly to a select range of wiring harnesses.
IMPORTANT NOTE: Relays must be used.
| Make | Model | Compatible From | Compatible To |
|---|---|---|---|
| Ford | Ranger PX2 | 2015 | 2018 |
| Ford | Ranger PX3 | 2019 | 2021 |
| Ford | Everest | 2015 | 2021 |
| Ford | Everest (fitted with LF fascia) | 2015 | 2021 |
