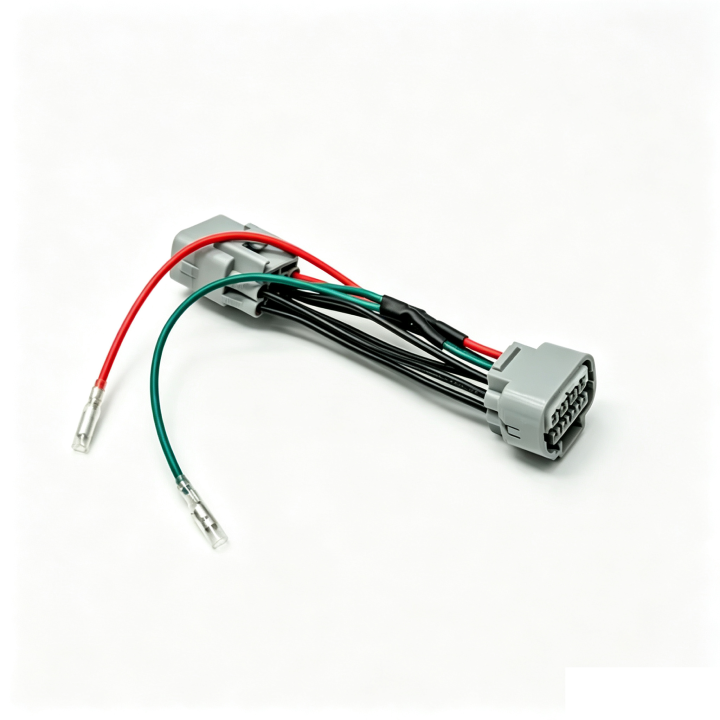

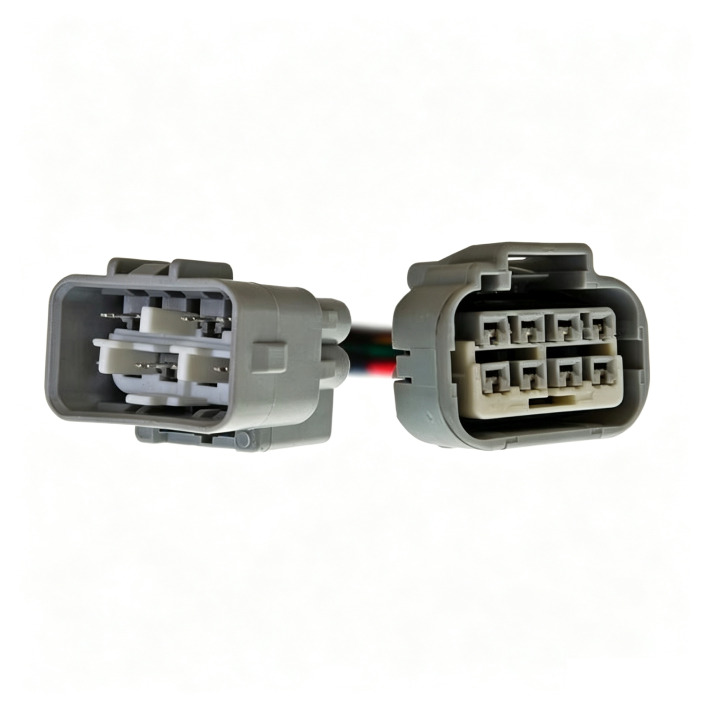

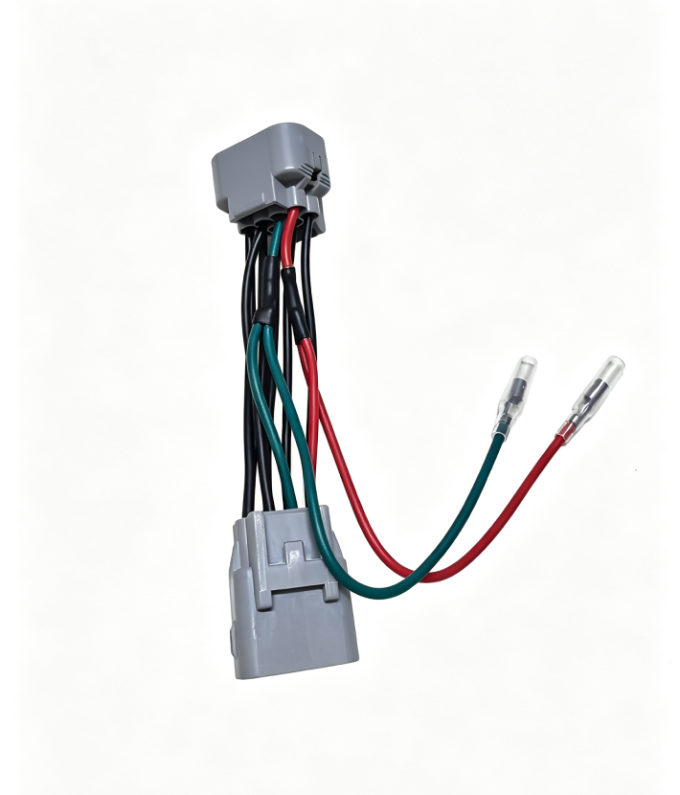

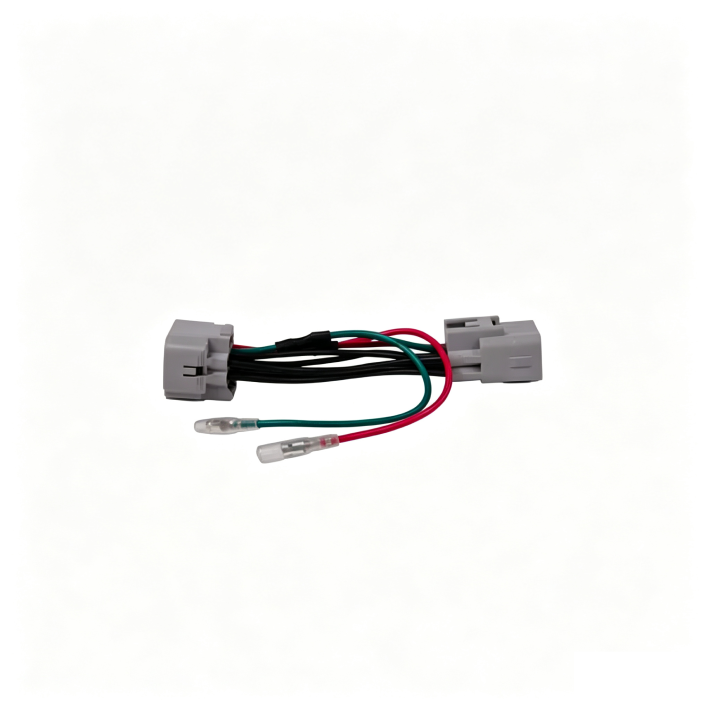

Plug & Play Headlight Piggyback Adapter Harness for Mitsubishi MR Triton Factory LED Headlights – No Wire Splicing
SKU: CBMR8PIN
Upgrade your Mitsubishi MR Triton with the headlight patch harness. 100% plug & play 8-pin adapter for factory LED lights. No wire cutting.
Описание
Key Features & Bullet Points (Highlighting Pain Points)
1. 100% Plug & Play Installation: Connects directly into the OEM 10-pin factory headlight connector behind the headlight assembly. No splicing, wire cutting, or drilling holes in factory dust covers required.
2. Seamless Auxiliary Lighting Integration: Safely triggers high-beam signals for LED driving lights, spotlights, and LED light bars while maintaining factory CANbus integrity.
3. Vehicle Compatibility: Specifically engineered for Holden Colorado RG (2012–2020), Holden Colorado 7 (2012–2016), and Holden Trailblazer (2016–2021).
Multi-Function Wiring Harness:
Red Wire: Positive high-beam trigger signal (+12V)
Green Wire: Negative high-beam circuit (-) (Both Red and Green wires must be connected)
Blue Wire: Optional low-beam trigger (+12V) for daytime running lights (DRL) or positioning light functionality.
Easy 3-Step Installation Guide:
Locate & Remove: Depress the locking tab and remove the original OEM 10-pin connector from the back of either the left or right headlight assembly.
Plug In: Connect the patch harness directly into the factory headlight assembly and attach the removed OEM connector into the matching patch harness receptacle.
Connect & Go: Connect the high-beam trigger wires to your compatible driving light wiring loom.
Wiring Configuration:
Red Wire: High Beam Signal (+)
Green Wire: High Beam Ground/Negative (-)
Blue Wire (Optional): Low Beam Input (+12V) for position light / DRL feature.
| Make | Model | Compatible From | Compatible To |
|---|---|---|---|
| Mitsubishi | Triton MR | 2018 | 2023 |
