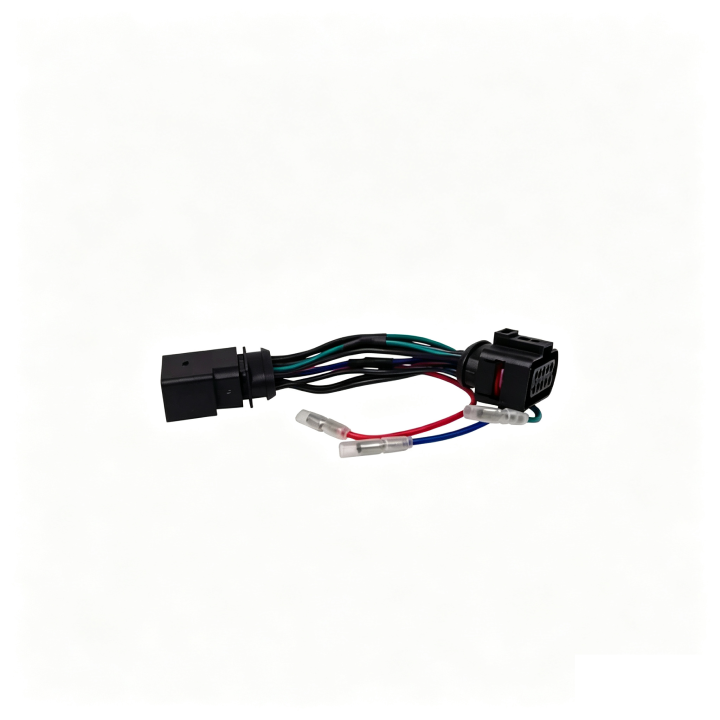

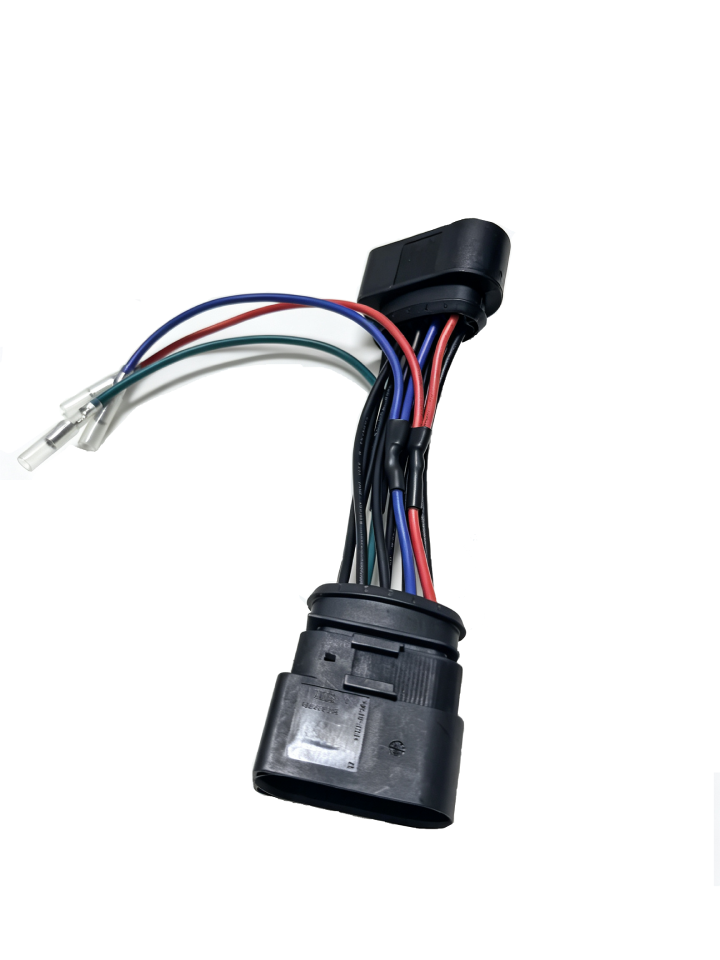

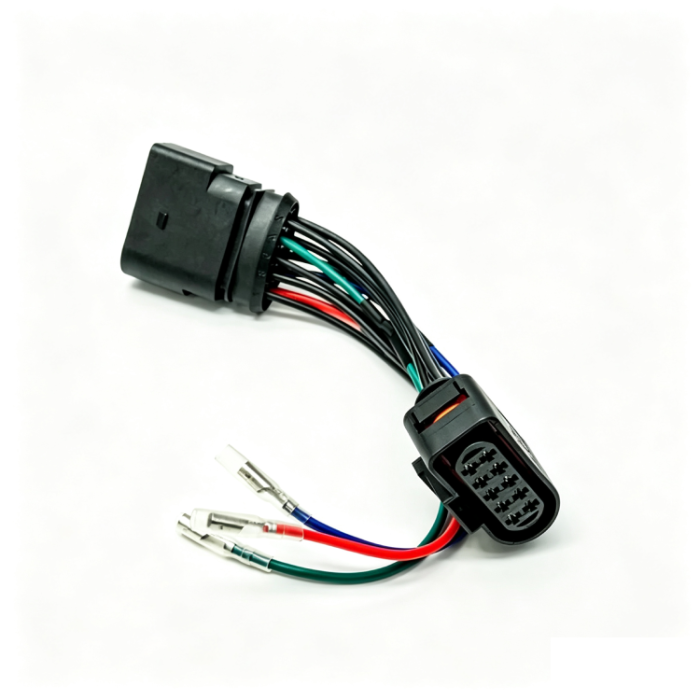

Headlight patch harness suits Holden Colorado
SKU: CB10PINH
Upgrade your driving lights effortlessly with the Headlight Patch Harness for Holden Colorado RG. 100% Plug-and-play, no wire splicing required.
Description
Key Features & Bullet Points (Highlighting Pain Points)
- 1. 100% Plug & Play Installation: Connects directly into the OEM 10-pin factory headlight connector behind the headlight assembly. No splicing, wire cutting, or drilling holes in factory dust covers required.
2. Seamless Auxiliary Lighting Integration: Safely triggers high-beam signals for LED driving lights, spotlights, and LED light bars while maintaining factory CANbus integrity.
3. Vehicle Compatibility: Specifically engineered for Holden Colorado RG (2012–2020), Holden Colorado 7 (2012–2016), and Holden Trailblazer (2016–2021).
Multi-Function Wiring Harness:
Red Wire: Positive high-beam trigger signal (+12V)
Green Wire: Negative high-beam circuit (-) (Both Red and Green wires must be connected)
Blue Wire: Optional low-beam trigger (+12V) for daytime running lights (DRL) or positioning light functionality.
| Make | Model | Compatible From | Compatible To |
|---|---|---|---|
| Holden | Colorado | 2012 | 2021 |
| Holden | Colorado RG | 2012 | 2020 |
| Holden | Trailblazer | 2017 | 2021 |
| Holden | Colorado (fitted with LF fascia) | 2012 | 2021 |
